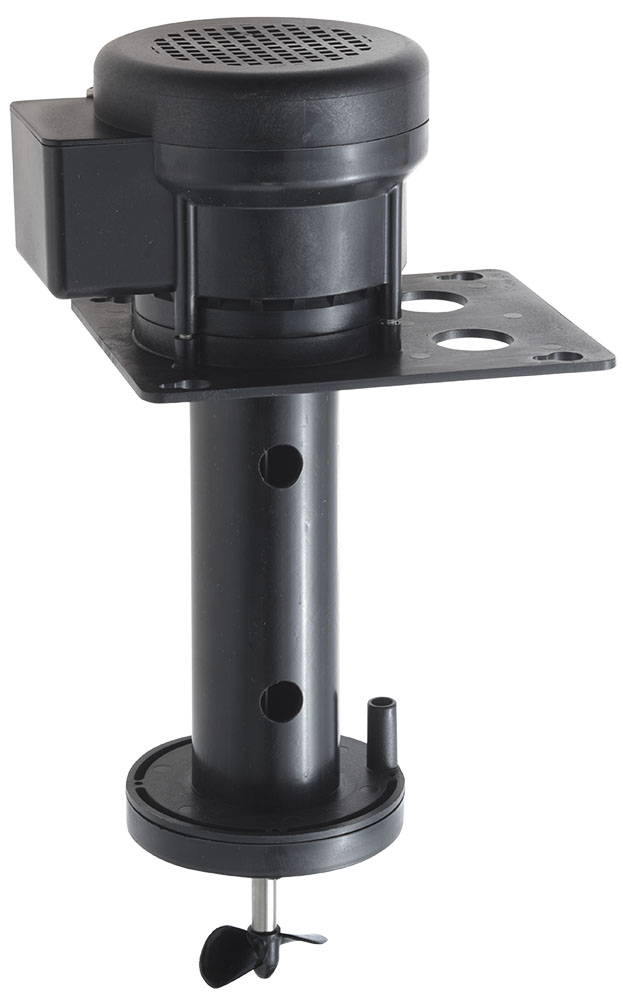

Pes

  • Refrigerator

Characteristics and performance

  • Single-phase motor with permanent capacitor inserted
  • External ventilation
  • Stainless steel AISI 303 motor shaft
  • Long-life CW bearings in semi-rigid supports: almost total absorption of vibrations and noise
  • CL “F” windings, with built-in thermal motor protection
  • IP 54 protection against liquid ingress
  • Motor parts made of non-flammable thermoplastic material according to VDE 0730 and UL 94 standards

Various notes and warnings

  • The pump can operate correctly even in the presence of small foreign bodies in the circulation liquid
  • The pump outlet pipe is compatible with John Guest connectors
  • Connectors with Shuko and Feller plugs can be supplied on request
  • Motors with voltages and frequencies can be supplied according to customer requirements
